Product Specifications:
- Discharge Bore: 50 mm (2")
- Motor Output: 0.75 kW (1 HP)
- Voltage / Frequency: 220V - 240V / 50Hz (Single-Phase)
- Phase: Single-Phase
- Max. Head: 12.5 m
- Max. Flow: 440 L/min (26.4 m³/h)
- Starting Method: Capacitor Run
- Dry Weight: 16.5 kg (excluding cable) / approx. 17 kg (total)
- Cable Length: 5 m (Standard)
- Impeller Type: Vortex (Glass-fiber reinforced Resin)

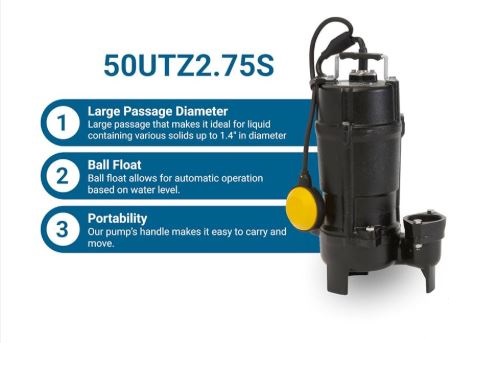

Product Features:
- Heavy-Duty Cast Iron Construction: Durable grey iron casting ensures long-lasting performance in harsh sewage environments
- Automatic Operation (Ball Float): Integrated float switch allows for hands-free operation based on water levels, preventing dry-running
- Anti-Wicking Cable Entry: Patented design prevents water from entering the motor through the cable strands, even if the jacket is damaged
- Large Solids Passage: Vortex impeller design allows for the smooth passage of solids up to 35 mm (1.4") without clogging
- Dual Inside Mechanical Seal: Silicon carbide seals are submerged in an oil bath for superior lubrication and protection against leakage
- Patented Oil Lifter: Forcibly lubricates the upper seal faces even at low oil levels, significantly extending seal life
- Built-in Thermal Protection: A circle thermal protector automatically cuts power if the motor overheats or experiences overcurrent
[MANDARIN]
- 耐用铸铁结构: 采用坚固的灰口铸铁材质，确保在严苛的污水环境下依然经久耐用
- 自动运行 (浮球开关): 集成浮球开关，根据水位自动启停，无需人工干预并防止干转
- 防吸潮电缆进线口: 专利设计，即使电缆外皮受损，也能防止水分通过电缆芯进入电机
- 大通道防堵塞设计: 旋流叶轮设计允许直径达 35 毫米的固体颗粒顺利通过，有效避免堵塞
- 双端面内置机械密封: 机械密封置于油室内，采用碳化硅材质，提供卓越的密封保护
- 专利油提升器: 即使润滑油量减少，也能强制润滑上部密封面，大幅延长密封寿命
- 内置热保护装置: 圆形热保护器在电机过热或过流时自动切断电源，防止电机烧毁
Inquiry - 2" TSURUMI 5OUTZ2.75S AUTOMATIC CAST IRON SEWAGE PUMP
